High Temperature Stage that can be used in the FIS setup

linkam-stage-cool-pic.jpg linkam-stage-image-under-objective.jpg

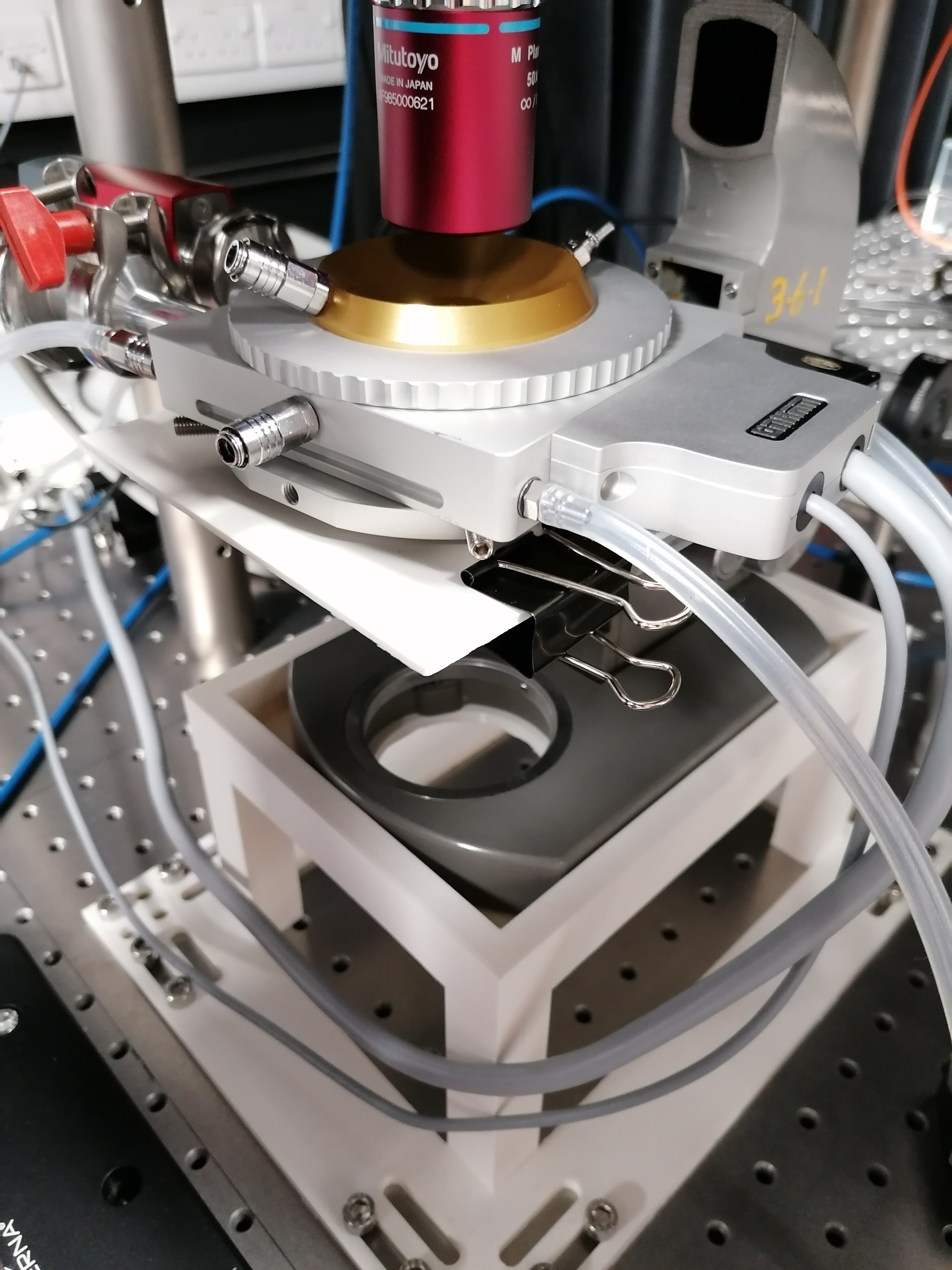

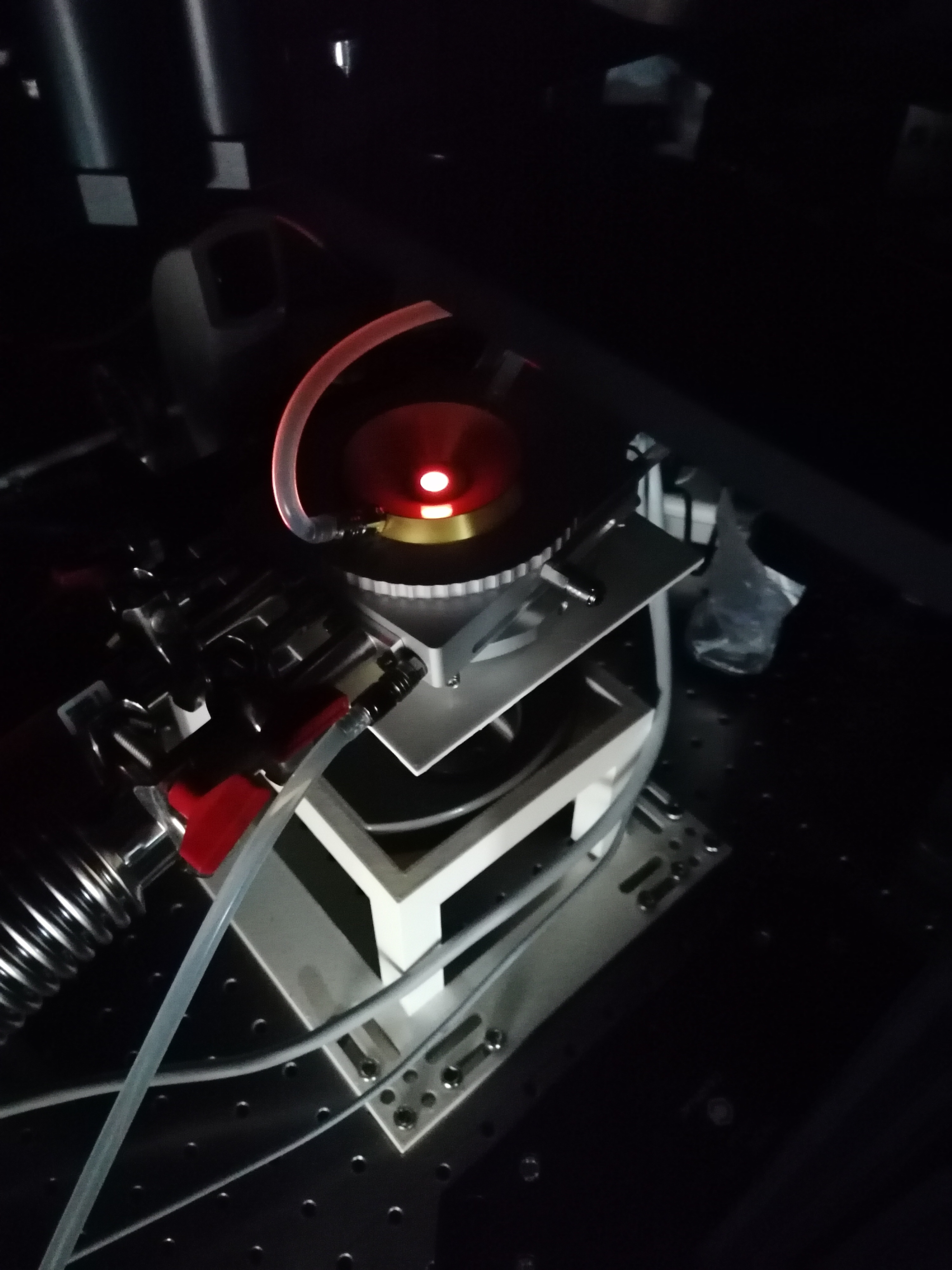

Linkam TS1000EV stage

High Temperature Stage Specifications

  • Model : Linkam TS1000EV, with internal electrical contacts and vacuum option
  • Temperature range : ambient to 1000ºC
  • Maximum sample weight : 120mg
  • Maximum heating rate : 200°C/min
  • Aperture hole : 1.7mm
  • Weight : 0.5kg
  • Maximum vacuum : 10-3mbar
  • Maximum voltage : 50V
  • Maximum current : 0.2A
